Part 97 Rewrite and the AM Power Limit

While the proposed rewrite of the amateur regulations, under PR Docket 88-139, does not appear to add any further restrictions to AM operation, the scheduled 1990 power reduction is retained. Interestingly, the term "peak envelope power" disappears under this proposal. The term transmitter power is defined as "the average power during one RF cycle at the crest of the modulation envelope under normal operating conditions that is present at the antenna terminals" of the transmitter. Although this definition seems vague, and its meaning could be the subject of countless hours of debate, the FCC intends it to mean the same thing as "peak envelope power." Average power is what you see graphically displayed on an oscilloscope. The defined power limit would limit the peak power as indicated by the scope to 1500 watts. With no modulation present, the carrier power, in the case of a plate modulated class-C amplifier, is about 750 watts. With full modulation, the scope may indicate more than 5 times that depending on the modulation waveform (even though many of the inexpensive "amateur radio quality" peak reading wattmeters may indicate less than 1500 watts, demonstrating the general uselessness of these instruments).

In Docket 88-139, proposed 97.403, 53 words are used to "grandfather" the 1 KW power input limit, and make it expire in 1990. However, this would be reduced to 35 words, by defining the AM power limit in terms of carrier output power (the same standard used for measuring the output power of AM broadcast stations). The paragraph could be reworded as follows:

97.403 (b) No station may transmit with a transmitter power exceeding 1.5 KW. This power limit notwithstanding, a station may transmit full-carrier A3E emission with transmitting power exceeding 1.5 KW provided the mean carrier power at the antenna terminals of the transmitter does not exceed 0.75 KW.

What Would This Accomplish?

This would rescind the unfair, arbitrary, discriminatory power reduction scheduled to be imposed on AM, while CW, FM and some other modes enjoyed a doubling of their power limits (the SSB power limit stayed about the same). By defining AM as "full-carrier A3" this would eliminate the possibility that amateurs could circumvent the intent of the rules by using "ultra-modulation" or the "upside down tube" circuit, a fear expressed by the FCC as one reason they refused to permanently grandfather the old AM power limit. With ultramodulation and similar schemes, the average (mean) carrier power increases when modulation is applied, exactly as in the case of controlled carrier. The broadcast industry calls this "positive carrier shift", and it can be measured with a simple rectifier type RF voltmeter. With the upside-down tube circuit, the emission is no longer full carrier A3E but reduced carrier. The circuit consists essentially of a high-level balanced modulator which generates a double sideband signal. The carrier is generated independently of the sidebands and can be adjusted from zero to far beyond the normal carrier level for a given set of sidebands.

The above change would bring fairness back to the FCC rules, simplify the wording of the power limit in Part 97, and close the loopholes that have always existed under the grandfathered "DC input" power limit.

Remember, the deadline for comments on this proposal is August 31, 1988. All readers are urged to participate in this rulemaking proceeding. While we are at it, let's take advantage of one more opportunity to bring up the AM power issue to the FCC.

For complete details on the proposed Part 97 Rewrite, see last month's AM Press/Exchange.



W A R N I N G

When cleaning and restoring old equipment, NEVER use a cleaning agent such as "409" or "Fantastik" to clean moulded Bakelite parts. Several would-be restorers have reported the same disasterous result: these cleaners will remove the dirt and grime from the part, but they also permanently remove the shine from the Bakelite! Don, K4KYV ruined some rare National Type A Velvet Vernier dials using that stuff. Another AM'er recently washed the shine off the knobs and escutcheon of his newly-acquired Collins KW-1. Still another antique collector removed the gloss from a beautiful brown Bakelite panel of a 1920's broadcast receiver. Upon hearing the above tales, a veteran antique radio collector/restorer remarked, "I have done the same thing myself." No amount of rubbing and buffing seems to bring back the original gloss, although some success has been reported with automotive paste wax and other substances.

Perhaps some of our readers could help shed some light on this. Has anyone reading this ever had any work experience with the manufacture of Bakelite, or phenolic materials? We need to know exactly what the above cleaning agents wash off. What forms the original glossy surface on moulded Bakelite anyway? Is some kind of lacquer finish applied, or does the Bakelite come out of the mould with a high gloss? Evidently the offending cleaners either wash off a lacquer finish or attack the surface of the phenolic itself and leave behind a roughened etched surface. We have tested these agents on Bakelite parts of no value, and noticed a brown residue comes off the plastic when it is cleaned. At first we thought it was tobacco residue from equipment used by a heavy smoker. When some black Bakelite parts are cleaned with the above agents, not only does the shine disappear; the black color is also removed, leaving behind a brownish-black surface with little gloss.

We are interested in finding a way to restore the original shine. If the gloss is lacquered on, it should be possible re-lacquer the part with same kind of lacquer and restore the finish. If the Bakelite comes out of the mould already shiny, then it should be possible to buff the shine back. If you have any information on this, or suggestions based on your own experience, please write to The AM Press/Exchange, Route 1 Box 281, Woodlawn, TN 37191. We wish to share this information with other readers. This seems to be a widespread problem among collectors and others who attempt to restore old electronic equipment. Very few people seem to be aware that the above cleaning agents can cause this type of damage. The word must be spread, to avoid needless damage to irreplaceable collector's items and fine pieces of classic equipment. Although prevention is to be preferred over the repair of damage already done, we are also seeking any possible techniques to permanently restore any parts already damaged by these chemicals with an authentic finish similar or identical to the original.

When cleaning moulded Bakelite, it is better to stick with warm water with a mild soap solution and a soft rag. Another hint: do not rub too hard with the cloth. If too much pressure is applied, even a soft rag will leave microscopic but visible scratches on the glossy surface.



Canadian Authorities "Not Flexible" on Equipment Issue

A difference of opinion has developed between Communications Canada (the official new name for the DOC, Department of Communications) and Canada's two national amateur organizations, the Canadian Radio Relay League (CRRL) and the Canadian Amateur Radio Federation (CARF). In February, CC proposed a four class Restructuring of the Amateur Radio Service. The three lowest levels of amateurs (A, B, and C) would be required to use commercially designed and marketed transmitting equipment but they could build and use any other gear they wanted. There would be no such restriction on top level, Class D amateurs. The ham groups feel that the "commercial gear" only concept runs counter to the basic premise that the Amateur Radio Service is also an experimental service. They feel that all amateurs should be able to build and experiment with all gear of their own making provided it does not cause interference. "Whether an amateur wants to be a communicator or an experimenter should be left to the individual to decide without being forced by Communications Canada and the Radio Regulations," they jointly say. It appears that CC is not flexible on this aspect. Now comes word that the joint CRRL/CARF working group has developed a compromise solution. They want CC to allow the lowest three level amateur classes to use: (1.) home designed and built transmitters up to 250 watts subject to their being checked out by a level D amateur; (2.) transmitters up to 250 watts built from commercial kits; (3.) home designed and built transmitters up to 10 watts without being checked out and; (4.) commercially made transmitters up to 250 watts. -W5YI Report



open forum

Common Sense and Good Engineering Practice

One way to publish information which serves a useful purpose is via a regular newsletter. This costs money and distribution is very limited. Hams have transmitters. It makes common sense for hams to publish information which serves a useful purpose via amateur programming. The cost per person so informed is much less and the distribution is unlimited. Also, the activity uses and develops radio skills as well as educational skills, which is the purpose of amateur radio.

With a 45 minute program which has a regular and large listenership, it makes common sense to start and stay on one frequency and time. This will minimize interference to those who don't choose to listen while maximizing the convenience to those who do want to tune in, set their times to record, etc.

This is an amateur Information service and must be non-commercial and shoe-string cost effective. To reach many people on different time schedules and with changing propagation IARN broadcasts five times every day on 3.975, 14.275 and 28.475. For full fidelity and further listenership are special AM broadcasts on 3.890 and 7.290 Sunday evening during prime time. That is 113 separate broadcasts per week, all of which are under semiautomatic control. The entire concept is the most common sense way to do it. The broadcast schedule is published every month in QST and announced on every program. This makes common sense. Any interference to others is very incidental and certainly minimized. A QRZ before each broadcast would end up causing more problems than it would solve and for many common sense reasons is simply not practical. If you have any common sense suggestions we sure want to hear them.

Glenn Baxter, K1MAN, IARN Net Manager





A Rebuttal

A comment about the article "Let's Improve AM Operation", May, 1988. While the author does seem to repeat the amateur code, and the general good amateur operating practice ideas we all know, there was an underlying theme."Transmissions should be properly timed ... don't be long winded ... taxing"

"don't mix modes ... same old stuff ... better language, and interesting and quality subject matter"

The lady who didn't like what she heard can tune away. Swl's who don't find a ham in Maine discussing modifying a Ranger interesting, they can tune away. If another ham doesn't like hearing a fellow in Connecticut talk for twenty minutes, tune away. If a ham doesn't like a person near the New Hampshire border having a better "strapping" signal, tune away, or go to work and improve his signal! If Swl's and hams don't like hearing a fellow in Pennsylvania, exchanging lofty jokes and laughter with another fun intending ham near Boston at 1am in the morning, tune away!

THIS IS AMERICA! We don't have any one person in power to stifle individual expression and freedom of speech. Most of the people I've spoken to LIKE the individualism that gets expressed by the AMers. I find them all unique and enjoy the variety. There are countries where 'handcuffing people over ant hills' for not following one persons "vision" is the norm, however I was fortunate enough to be born here in the US!

Dean WA1KNX "The Kleenex"



ASYMMETRICAL PEAK-LIMITING

R. Bruhns, 26 Cedar Valley Ln, Huntington NY 11743



Many AM operators use peak-limiting compressors to increase average modulation without introducing objectionable distortion. However, most peak-limiters have two weaknesses:

  1. They excessively reduce the level of sounds having high peak-to-average ratios, producing a "squashed" sound.
  2. They don't provide good control of negative modulation when voice-polarity supermodulation techniques are used.

The sound quality of peak-limiting compression can be greatly improved if the voice waveform is taken into consideration. The voice waveform often has positive and negative peak dissymmetry as great as 2:1. Monitoring voice waveforms with a scope, I noticed that the voice sounds being squashed by the peak limiter were the waveforms with large polar asymmetry, especially the "short a" and "long i" sounds.

If the compressor is less sensitive to the polarity having the higher peak amplitude, the "squashing" can be reduced. As it turns out, this technique not only improves sound quality, but it is easily done, and it also improves the absolute control of negative modulation in voice-polarity supermodulation systems.

A peak-limiting compressor consists of a gain control stage, an amplifier, and a level detector. Some method of full-wave rectification is used to generate a DC representation of the peak level; this is filtered and fed back to the gain control stage. If the output peak level exceeds some arbitrary peak level, gain is reduced until the output level is slightly above that threshold - just enough to produce enough gain reduction to keep it there. (This slight output level overrun is called "compression ratio"; it is measured in terms of "dB-in to dB-out".)

By simply reducing the raw signal level fed to one half of the full-wave rectifier, the desired polar asymmetry can easily be achieved. I have had such great success with 2:l asymmetry that I haven't tried anything else, but you can easily try any ratio you would like. Note, however, that you must desensitize the proper wave-half, or you will more than defeat the purpose. A polarity selector switch can be added; if it has a center-off position, it can even allow normal symmetrical peak limiting if desired. (You may want this feature to demonstrate the advantage of asymmetrical peak limiting over the usual symmetrical kind.) Note also that the peak limiter output will increase when correct polarization is selected.

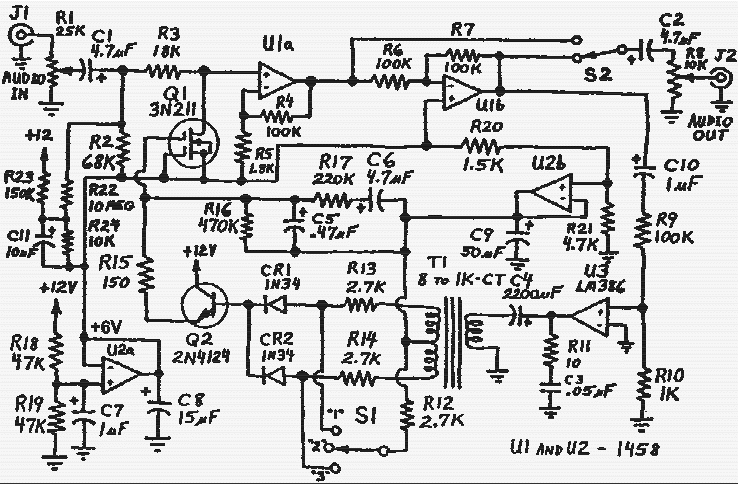

(P5-1) FIGURE 1 - AN ASYMMETRICAL PEAK-LIMITING COMPRESSOR

Refer to Fig 1. Pre-compression gain is set by R1. Input audio is amplified by U1. T1 is driven so that the level at either end of its secondary winding is about the same as the output level from U1. The output from T1 is full wave rectified by diodes CR1 and CR2. With S1 in position 2 (center), the rectifier will be equally sensitive to peaks of either polarity (no asymmetry), while if S1 is switched to position 1 or 3, the sensitivity will be cut in half for waveform peaks of the selected polarity (2:1 asymmetry). The resulting full-wave-rectified waveform at the output of CR1 and CR2 is peak detected by Q2, filtered by R15, R16, C5, R17 and C6, and fed to the variable shunt MOSFET Q1. Output level is set with R8, and output polarity can be reversed with S2.

For simplicity, imagine S1 is in position 2 (center). If the output level of T1 exceeds about 1V peak-to-peak, the peak detector output causes MOSFET Q1 to begin to conduct, reducing the audio fed to U1a. (A FET will shunt low AC voltages with relatively little distortion; the audio voltage to Q1 will be about 10 mV p-p.) Any further increase in input level will only result in a slight increase in output level, producing correspondingly greater gain reduction. Thus the output signal is peak-limited to about 1V peak-to-peak. If S1 is switched to positions 1 or 3, the peak detector will be desensitized to peaks of one polarity, or the other. The effect is best monitored with an oscilloscope, and it can be done over the air if necessary.

COMPRESSOR SETUP

Line levels to and from the compressor are expected to be about 0.1V rms. Higher input levels can be used by reducing the setting of R1. Higher output levels can be produced by turning up R8. The modulator is expected to have flat frequency response and good phase response following the compressor.

Insert the compressor between your audio preamp and your modulator. Set S1 (polar asymmetry) to the center-off position, and set R1 (compression) about mid-scale. Set R8 (post-compressor gain) for about 50% modulation. Set S2 (modulator polarity) so that your higher peaks are in the positive direction. Now try both positions of polar asymmetry. One of them should permit large positive modulation, while maintaining control of negative modulation; this is the setting you want. Finally, set your post-compressor gain for maximum positive modulation, or 100% negative modulation, etc, depending on your particular station setup.

Close-miking is advisable, for several reasons: room acoustics are usually bad, directional mikes sound "warm" up close, and RF, hum and noise problems are minimized when you reduce preamplifier gain.

IN CASE OF TROUBLE

Audio equalization should be accomplished in the preamp feeding the compressor. Any significant phase distortion or frequency response variations following the compressor will defeat its purpose.

Excessive bass boost or bass cut will reduce polar asymmetry. Polar asymmetry can usually be optimized with a small amount of bass boost, but this depends on the microphone, the voice, etc. Experimentation will be necessary. If you expect to achieve voice-polarity supermodulation, your transmitter and modulator must be able to handle the large peak powers involved. If they can't, it won't work.

This compressor can add over 30 dB of gain. If you have RF leakage into your audio, if your modulator "talks back" to you, if you have loud background noises, etc, you will have problems. Shielding, filtering, grounding and room acoustics become more important when advanced techniques such as compression are used.

Your MOSFET may require different bias voltage. If necessary, try changing the value of R20. Too high a value here will produce excessive output, while too low a value will result in low gain.



A Reawakening

It was 1963 when I first started listening to AM on 3885 as a teenager. Little did I know that 25 years later I'd be recreating that introduction to ham radio and enjoying it even more the second time around.

Back then, I had a bedside Hallicrafters S-40 that was acquired to listen to late night rock and blues from such illustrious stations as WLS, WCFL, WSM and XERF. Feeling inquisitive one night, I wandered onto the ham bands and was hooked by the fascinating QSO's I monitored on 75 meters.

The talk about "home brew" rigs running a "full gallon" quickly caught this Kentuckian's attention. In short order, I got my novice license and started on two meter AM with a Heath "Twoer", graduated to technician and got on six with a Clegg "99er" and with my conditional moved onto HF with an NCX-3: my fatal mistake.

Looking back, the early 60's was a period of turmoil for ham radio and I fell under the influence of "progressive" hams who steered me in the direction of SSB, a mode that had become quite popular with the advent of inexpensive transceivers. I quickly became disenchanted with "quick break" QSO's with other appliance operators and went back to listening to AM. While I could run AM (with carrier insertion) it was a poor substitute for high level modulation and I spent more time listening than talking. At the same time, a series of events occurred that took me away from the ham bands: getting a driver's license, socializing with the opposite sex, going to college, getting a job, getting married and raising a family. Needless to say, I lost touch with ham radio and I let my license lapse without even knowing or caring about it.

Now comes the reawakening! At the ripe old age of 39 and bored with TV I dust off my old 75A-1 (picked up at a flea market while still an active ham) and start hearing familiar voices... What a surprise to hear "K4KYV - Woodlawn, Tennessee" come through the speaker as if out of a time warp. In fact, I spent most of my earlier ham years listening to Don being QRM'd and generally harassed by SSBers who felt the entire spectrum was their domain.

Quickly, I realized that there were a lot of other AMers, many of whom were relatively young but like me appreciated the interesting conversations and pleasant listening conditions that AM offers.

Then I picked up a copy of "QST" and saw an ad for SPAM. How exciting to learn that here was an active organization devoted to AM. From SPAM I received information about the "AM Press/Exchange" and maybe I shouldn't have been surprised to see K4KYV as the editor.

It took me no time to qualify as a SPAM auxiliary member, using the SPAM SWL report forms and other helpful information provided by Floyd, WA5TWF. One of my first confirmations was from Hoisy, W4CJL, the founder of SPAM, who offered further encouragement to get my license again and join the growing group of active AMers.

Hoisy's encouragement was complemented by that of many other AMers who took the time to not only return the reception reports but also include nice notes, letters, QSL's and photos. Feeding on this encouragement and the challenge offered by the "SPAM 100" award, I found my spare time being spent with the phones on instead of in front of the TV.

In reviewing my first 100 confirmations a couple of facts about AMers become evident -- they are responsive and growing in number. My percentage of confirmations was over 85% and more than one third even included QSL'S. Many said it was their first SWL report and I caught many more during their first AM QSO (proof that AM is growing).

I've picked up a battered Valiant and dusted off my old magazines in search of some home brew projects. More importantly, I'm studying and will be going for my license again soon. I want to get back on the air and have a chance to thank all of the AMers who have helped and motivated me to get back to what truly drew me to ham radio in the first place: friendly, interesting and informative roundtable QSO's using a mode that is technically challenging and ultimately pleasurable listening.



EDITOR'S NOTE: Regretfully, we are unable to properly credit the author of this article. There is no name on the manuscript, which got inadvertently separated from the mailing envelope. If the author will notify us, he will be fully credited next issue.



MEET THE AM'ers

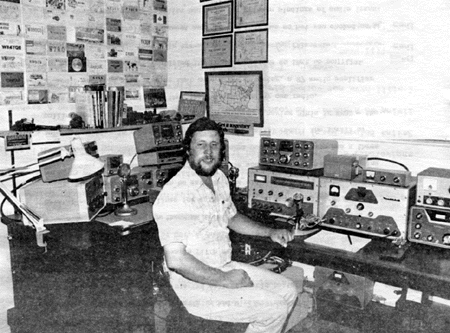

(P8-1) Marty Drift WB2FOU/5. His AM station consists of a Heathkit DX-100 transmitter and RX-1 Heathkit receiver. Antennas are 80 and 40 metre bazooka and CL-33 Classic for 20-15-10. Click to view photo.



(P8-2) S.P.A.M sign created by Fred Schrader, W5JKD. This is not a hardback sign but a banner suspended from a self-supporting wooden stand. It was used by the "Houston bunch" in 1987. Photo by W5JKD, Priddy, Texas.
Click to view photo.

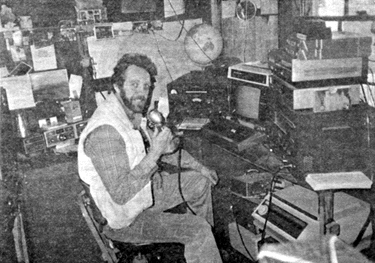

IARN "Broadcasters" on the air at K1MAN.

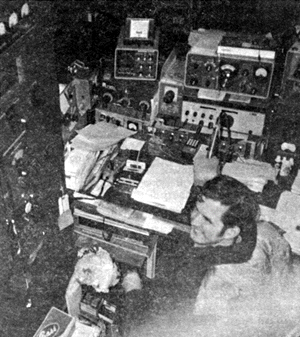

(P9-1) Louie, N1EHI. He is blind. Note the Collins KW-1 for which Radio Moscow stepped aside. Click to view photo.
