Copyrighted, 1988 by George A. H. Bonadio, W2WLR, Watertown, NY 13601-3829

Part 6
YOUR 1:1 SWR MAY BE DECEIVING YOU

Years ago you could buy, factory new, E. F. Jonnson's Matchbox Tuners and other designs of tuners wherein you could tap your feeders onto a different reactance. Suddenly, only 6 months after my story was published showing the gross power factor problems with each of these systems, E. F. Johnson Co. had their famous Matchboxes off the market. This is because E. F. Johnson Co. was an honorable company.

Today, however, one popular publisher continues to push the (wasteful) tap down coil tuners. Either the editors do not read other publications (you guess why), or they do not believe stories published in other publications (you guess why), or they did not try the "proof of performance test" (part of "good engineering standards") (you guess why), which I laid out for the readers to do to convince themselves. I do not know why. Do you still use a Transmatch?

Here is the test that I did in many different experiments at two of my different home QTH'S. I ran my full 100 watt output transmitter power into a tuner which put all of its output directly into lighting a 100 watt lamp. I did this on every band of 160 through 10 meters. The bulb dimmed slightly towards the shorter wavelengths.

Each of these times I ran the transmitter through coax, to an SWR bridge, through more coax, to a tuner, to output terminals which could handle a 150 ohm lamp load. In each case I adjusted to an SWR of 1:1.

What I was looking for was an answer to my question: Does the high Q (bell-like "ringing") of a tuner properly handle an opposite reactance placed across only part of one of its own reactive elements? In other words: Will I be able to properly tune out the reactance of an inductive load across a part of a capacitor, or, likewise, the reactance of a capacitive load across part of an inductance of a used portion of a coil?

The Johnson Matchbox places feeders across part of its "differential" loading capacitors. The Transmatch places feeders across part of its used portion of its tapped coil inductor.  These arrangements can be inefficient when driving loads of the opposite reactance. In about 40% of practical cases, there might be a very significant power factor problem. There was. There is. It does not go away. You can not tune it out. And this defeating "Power Factor Problem" can still waste substantial power even if your SWR bridge reads a perfect 1:1. Why?

When I went to my tuner and put a feeder of considerable length between my tuner and my dummy load bulb, I quickly had my answer. At some random wavelengths, the bulb was essentially as bright as before, but on others, the bulb was dim to very dim -- yet the SWR was still reading 1:1!

Then, when I changed the length or the impedance of the feeders, the "dim-bulb" bands all changed. Some formerly dim bands were back up to full brightness. One band showed no light at all, although there was some bulb warmth. Different lengths of coax and open wire feeders were tried. Out of six bands I always found at least two bands that were quite poor. Once I had four out of six bands at much less than normal, still all with SWRs reading 1:1!

However, if I took the feeders out, the bulb lit normally and of course best at 1:1, on every band, directly on the tuner terminals. The reactances, produced by the mismatch of the feeders to the bulb, are real and very significant. In one test on 160 meters using a coupler, I was able to quickly (soldering) change back and forth from a tapped coil to a series tuning of the same L & C. The SWR easily and quickly tuned to 1:1 in each case, but the total difference in receiving here was 10dB, and my contact out of town also estimated that I had a 10db signal difference.

Both circuits gave me an SWR of 1:1, yet one of the circuits lost about 90% of my outgoing and incoming signals. I reported this in my story. It was real.

E. F. Johnson Co. engineers must have had a hot session and then a series of tests. In six months, there were no new Matchboxes for sale. Personally, I have a hard time trusting another "authoritative representing" organization that continues to ignore these discoveries which must be an embarrassment to them. I feel that if they cannot admit this innocent engineering error of omission (I have done much worse), then should I trust their engineering representation of me to the F.C.C.? To ease my troubled conscience, I dropped my A.R.R.L. affiliation, those many years ago.

Avoiding these power factor problems is not difficult if in the original design one observes these Bonadio's Tuner Rules:

-Do not put feeder loads across only part of a tuner reactance that is in the circuit.

-Do not use a "differential" tuning capacitor for connecting feeders.

-Do not use taps onto a coil to connect feeders across a portion of the used part of a coil.

-Either use series tuning, or use parallel tuning in which the feeders connect simultaneously to both inductors and capacitors.

-Never use a fixed link for coupling.

-A swinging link, either series or parallel tuned, resonant at mid-band, with a Q of about 4 at 50 ohms, will adjust the impedance correctly, without excess heating.

-Resonance of the antenna L & C, at a Q in excess of 4, is enough to correct the link reactance also.

-Do not use tinned (the worst) wire, nor bare copper wire, which will corrode; the best being silver plated, even when stained.

-Do not use minimum solder, which is a dozen times more resistive than copper wire, but generously oversolder, or, best, use silver solder (which requires higher iron heat).

-Make sure your SWR meter reads the "Forward" level exactly the same on "Reflected" when the meter is removed and inserted backwards.

-Any finalized tuning that leaves a residual SWR is proof that the tuner is incapable of doing its job as adjusted with your load, perhaps due to too low of an "Operating Q".

-Never operate any tuner in which any turns of any coil are shorted out. Rather than shorting unused turns, just leave the unused coil ends unconnected.

-The best grounding is several grounding wires, from different directions, meeting at the tuner common grounding, which should include a metal case.

-Never power a tuner without a significant load connected to its output. (It may melt turns or arc.)

-An ideal design has a separate link coil and a separate antenna coil, switched in for each band, which can be left all tuned and loaded at the last frequency used on that band.

I have been using all of these except my case is 1/4" pegboard which holds 1/4" rods to capacitors and to swinging links. When we built my shack, I covered all but the window and the doors with overlapping foil. This shielding averages about -30 dB (full screening would be at least -60 dB) in and out.

The heavy duty bandswitch on my tuner includes extra positions which I use for dummy loads, outboard experiments, a lightning-short path (switch to "6 p.m."), antenna via twinlead to home radio, to a CB balun (unused) and a ferrite balun for any shortwave listening via coax.

Don't expect any such tuners on the market soon. It is a real project to build one. However, I run 700 watts of cw carrier through #18 silver plated copper with no significant heating. It has no power factor problem.

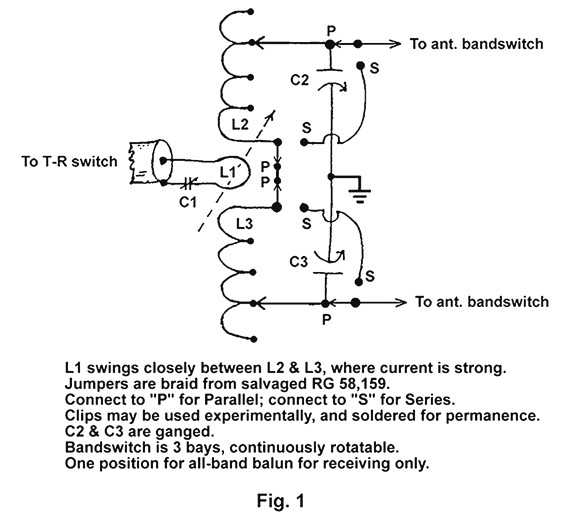

Figure 1

The primary problem with a proper tuner is that of finding a good "Q" for each band. Fig. 1 shows a tuner that has a tremendous range of possible loads that can be adjusted for a "Loaded Q" of 4 to 8.

A low Q will require tight coupling with the link. A high Q will need the link backed far out. Switching to parallel tuning as shown, will develop higher Q, as less coil is tapped for use. (Notice that no turns are shorted "out".) Table 4 values may be greatly reduced for most doublet operations.

In a series tuning, a higher Q is developed as more coil is used for resonance. Thus, this circuit is commercial and is designed for no power factor problem. It has a "tremendous" range to adjust for almost any feeders, even a single feeder alone, at a low Q, near 5, at very low losses, at a good medium bandwidth, with small and conservative parts, for economy.

Remember, any tuner that is of this design that tunes very sharply, or which does not reach an SWR of exactly "one-to-one", is not adjusted correctly.

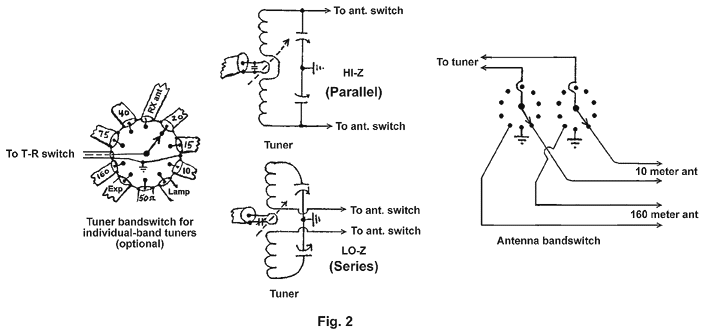

Figure 2

The swinging link is shown in Fig. 2. I use parallel tuning on 160, 75 & 40 and series tuning on 20, 15 and 10. For the new minor bands, use an adjacent band setting.

In original construction, the link is disconnected completely, and if in series, temporarily connected in parallel. The link is adjusted for mid-band resonance and never retuned in operation. It is connected either in series or in parallel, as designed, at a Q of about 4. Either series at 4 x 50 ohms = 200 ohms reactance, or 50 ohms / 4 = 12.5 ohms in parallel tuning links.

Table 3 shows values of L & C for parallel links on 160, 75 & 40 and for series tuning on 20, 15 and 10 of Fig 2. Table 4 shows maximum values of L & C to have in Fig. 1. The high choices of ranges for Fig. 1 are needed in order to find the proper loaded Q at the resonance which will be found at different taps, for extremely hard to tune systems.

TABLE 3: 50 Ohm Swinging Link Design, Q of 4

BAND L C CIRCUIT
160 1 uH 8000 pF Parallel
75 0.5 uH 4000 pF Parallel
40 0.25 uH 2000 pF Parallel
20 2.5 uH 60 pF Series
15 1.8 uH 45 pF Series
10 1.2 uH 30 pF Series

TABLE 4: Antenna L & C Maximum Values

BAND SPLIT L C & C DUAL
160 100 uH 3200 & 3200 pF
75 50 uH 1600 & 1600 pF
40 25 uH 800 & 800 pF
20 13 uH 400 & 400 pF
15 9 uH 300 & 300 pF
10 6 uH 200 & 200 pF

The leftover turns of coils must not be shorted out for the same reasons that you do not short out unused windings on power or audio transformers. These "hot" ends will not corona.

The large values of C may be made up from ceramic capacitors of 6,000V ratings, if each ceramic is not over 0.001 uf or 1,000 pf in a KW path. A series and parallel of these C's will handle 4 times the power before baking open, at the same C value but for twice the voltage ratings.

At powers under 500 watts, ceramics which operate warm enough to melt their wax should be replaced with two of the same voltage but each of half of the C value. Give them air space on both sides.

I used large compression capacitors of layers of mica, and inserted leaves to build up for my peaks. I bought extras and used two layers of mica between plates, and put them in series.

On voice peaks at the legal maximum power, the peak to peak r.f. voltage across the parallel link C's can reach 1,000 volts.

The coils themselves should be of large turns and relatively short. Long and slim coils look great but have poorer Q's than coils which are wider than they are long. This is why choke pies are wider than long, in spite of what you can find in a radio handbook.

These tuners will tune and load beautifully, broadly and with great efficiency. I would like to see a manufacturer produce them. Six tuners will cover 1.8 to 30 MHz and will be bigger than most "modern" tuners. I do not see any need for "automatic tuning" of this unit. I hear them and I work them easily on every band with this tuner; so can you.
